NVIDIA DRIVE Hyperion Autonomous Vehicle Reference Architecture

NVIDIA DRIVE Hyperion? is an end-to-end, modular reference architecture for designing autonomous vehicles (AVs). The latest generation includes NVIDIA DRIVE AGX Orin? Developer Kits, all built on the NVIDIA DRIVE Orin system-on-a-chip (SoC). This scalable platform include the foundational NVIDIA DRIVE? OS with DriveWorks, CUDA, cuDNN, TensorRT and sensors to deliver the highest levels of safety and efficiency in AV development.



DRIVE Hyperion Reference Architecture Key Benefits

High Performance

The NVIDIA DRIVE AGX? modular computing platform delivers rich automotive IO and 254 TOPS per SoC, and is built on auto-grade silicon.

Algorithm Development

Safety-certified sensor sets with production-validated sensor drivers and tuning accelerate algorithm development.

Data Productivity

Accurate sensor calibration, precise time synchronization, efficient data compression, and integrated utilities improve the entire data processing pipeline efficiency.

Optimization & Testing

Physically accurate ray tracing-based virtual sensors are available in NVIDIA DRIVE Sim? to virtually test and augment datasets with synthetic data.




DRIVE AGX Orin DevKit

The DRIVE AGX Orin Developer Kit uses the high-performance compute of the DRIVE Orin SoC to power autonomous driving capabilities, confidence views, digital clusters, infotainment, and passenger interaction with AI. Developers can build, extend, and leverage one development investment across an entire fleet with this scalable platform.

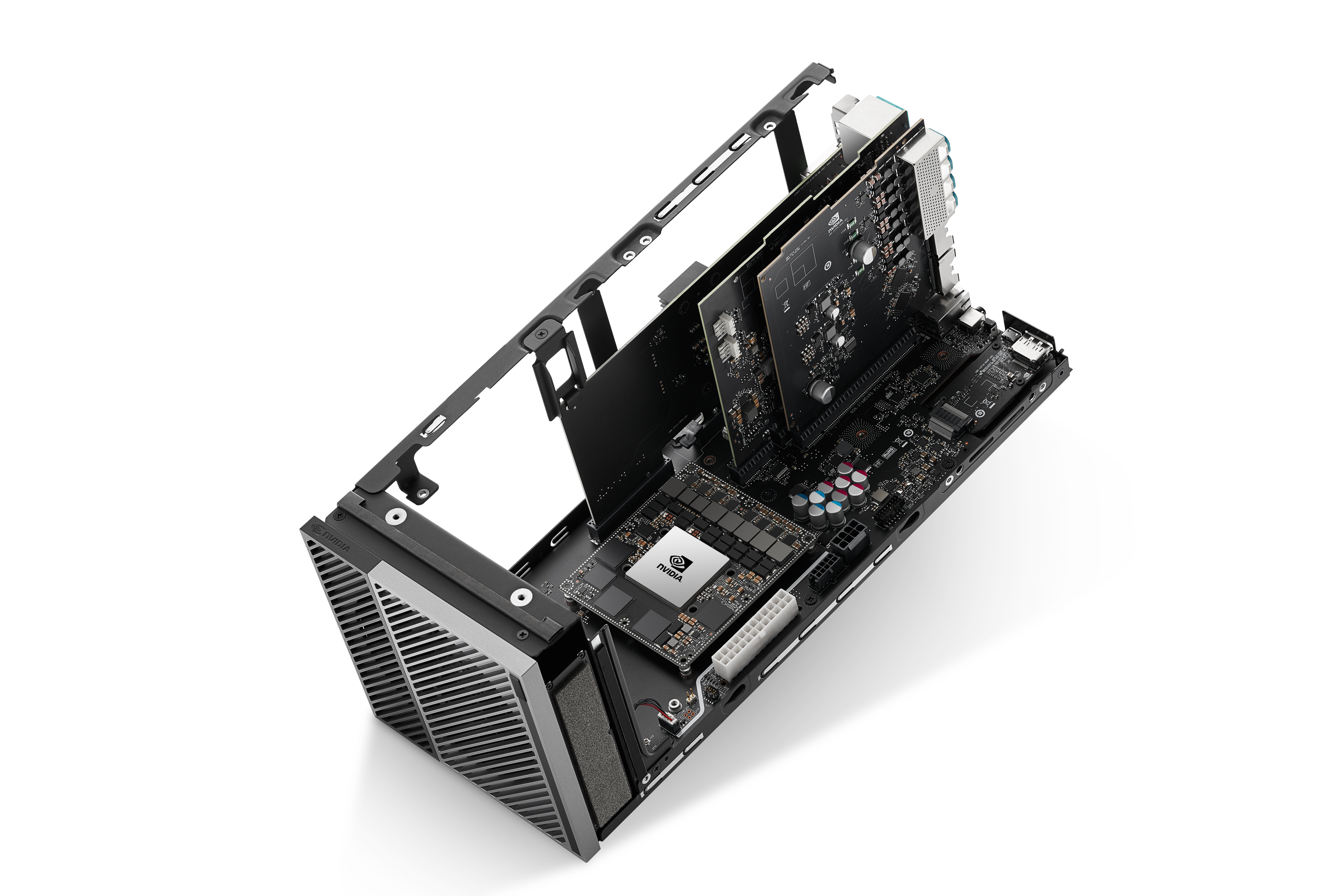

DRIVE AGX Orin Developer Kit

DRIVE AGX Orin Developer Kit

  • Powered by a single Orin module delivering up to 254 TOPS
  • Includes hardware, software, and sample applications needed for the development of production-level autonomous vehicle applications
  • Built on production auto-grade silicon
  • Provides rich automotive I/O and flexibility to expand
  • Ready to order your DRIVE AGX Orin DevKit and Accessories for bench or in vehicle development:
  • Contact Arrow (NVIDIA DRIVE Worldwide Distributor) at nvidia.drive@arrow.com
  • Alternately, contact your NVIDIA representative (or contact us)
  • NOTE: DRIVE Hyperion DevKits are only available direct from NVIDIA
ComponentDescriptionDetails
One Orin SoCDeep Learning Accelerators (DLA)87 TOPS (INT8)
NVIDIA Ampere architecture-class integrated GPU167 TOPS (INT8) | 5.2 TOPS (FP32)
Image Signal Processor (ISP)1.85Gigapixels/s
DRIVE AGX System I/OCamera90Gb/s over 16x GMSL(R) ports
LIDAR/Radar~30Gb/s over Ethernet
Vehicle IO6 CAN interfaces

ComponentDescriptionDetails
One Orin SoC12 Cortex-A78A CPU
Deep Learning Accelerators (DLA)87 TOPS (INT8)
NVIDIA Ampere architecture-class integrated GPU167 TOPS (INT8) | 5.2 TOPS (FP32)
Programmable Vision Accelerators (PVA)2048 GMACS (INT8) | 512 GMACS (INT16)
Image Signal Processor (ISP)1.85Gigapixels/s
Video encoderUp to 1.0GPix/s (H.265)
Video decoderUp to 1.9GPix/s
Memory bandwidth (256-Bit LPDDR5)~200GB/s
DRIVE AGX System I/OCamera90Gb/s over 16x GMSL(R) ports
LIDAR/Radar~30Gb/s over Ethernet
Vehicle IO6 CAN interfaces
Included Accessories Network Interface AdapterConverts 1GbE Rugged Auto HMT-D IO to Standard Ethernet RJ45 IO
Other cablesConnects the DRIVE AGX system to a host development computer

Scaleable AV Platform

  • 254 TOPS for multiple concurrent AI inference pipelines
  • Architected for safety
  • Streamlines software development with a fully assembled developer kit
  • Increases performance with the ability to easily connect multiple boxes

Rich Automotive I/O

  • 16x GMSL cameras
  • 2x 10GbE, 10x 1GbE, 6x 100 MbE
  • DisplayPort 1.4
  • Automotive Audio Bus (A2B)

NVIDIA DRIVE SDK Support

  • Includes the foundational software stack, NVIDIA DRIVE OS with DriveWorks
  • Contains a rich suite of developer tools such as NvMedia, NvStreams, CUDA?, cuDNN, and TensorRT?

Sensors

The DRIVE Hyperion Level 2+/Level 3 Reference Architecture sensor set includes 12 cameras, nine radars, one lidar, and 12 ultrasonics, all production-tuned and validated. Designed for the highest level of functional safety and cybersecurity, these sensors are fully synchronized and ready for high-quality 4D data collection. NVIDIA DRIVE Sim models of these sensors are available for testing and validation out of the box.

DRIVE Hyperion sensor set includes 12 wide-angle fisheye cameras.

Camera

A mix of wide-angle fisheye cameras for near vision, paired with high-fidelity wide and tele 8MP cameras for detecting longer distances.

Learn More
DRIVE Hyperion sensors have nine radars.

Radar

Multiple radars for overlapping front, side, and corner visibility and redundancy, with increased angular and vertical resolution for complex urban driving.

Learn More
DRIVE Hyperion sensor set has high resolution lidars.

Lidar

Front center automotive-grade lidar for an additional layer of redundant vision, as well as a rooftop high-resolution lidar for ground-truth (GT) data collection.

Learn More
DRIVE Hyperion sensors come with vehicle odometry sensing.

IMU + GPS

Vehicle odometry sensing for precise localization and ground-truth determination.


Learn More

Hyperion 8.1 Reference Architecture Sensor Specifications

Sensor Qty & Type Function Details
8 exterior cameras Wide & tele visionSony IMX728, 8.3MPx
4 exterior camerasFisheye near visionSony IMX623, 3.0MPx
6 radarsCorner & side sensingHella Short Range Radar
3 radarsFront & rear sensingContinental 1x Imaging and 2x Long Range Radars
1 lidarFront redundant sensingLuminar
3 interior camerasDriver monitoring system1x OmniVision - OX05B1B, 5Mpx
Occupant monitoring system2x OmniVision - OX05B1S, 5Mpx
2 IMUsVehicle odometry detection1x Continental SC13Sl, 1x Bosch MMP
1 GPSVehicle position detectionU-blox
1 development lidarGround-truth data collectionHesai
1 development GNSSGround-truth data collectionNovatel
Learn More About Hyperion Reference Architecture Sensors
Learn More About DRIVE AGX Orin Compatible Sensors

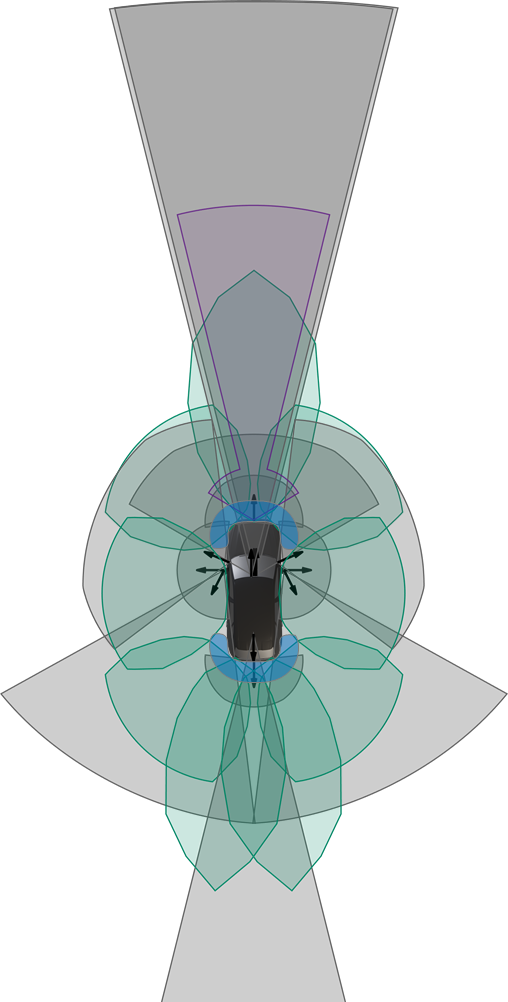

DRIVE Hyperion sensors coverage illustration
